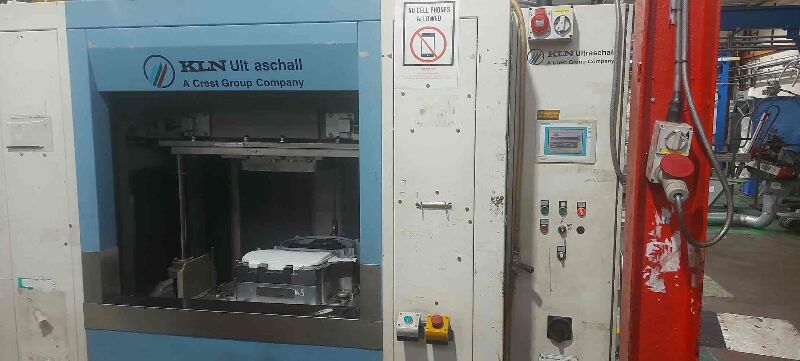

Used KLM Vibration Welder For Sale

KLN Linear Vibration welder 2046-40E
Power Supply: 400 volts x 3 phase
Rated Current: 25 Amp
Max Operating Pressure 100 bar
Performance 17KW
Year of Construction 2007
Welding surface up to 300 cm²
Lift table dimensions 1000 x 500 mm
Vibration Frequency: 150-260 Hz.
Amplitude: 0,35-1,3 (0,7-2,6).
Tool holder on the upper tool (W x D): 760 x 310 mm
Tool holder on the lift table (W x D): 1000 x 500 mm
Process power: 19,8kN
Top tool weight max: 50Kg

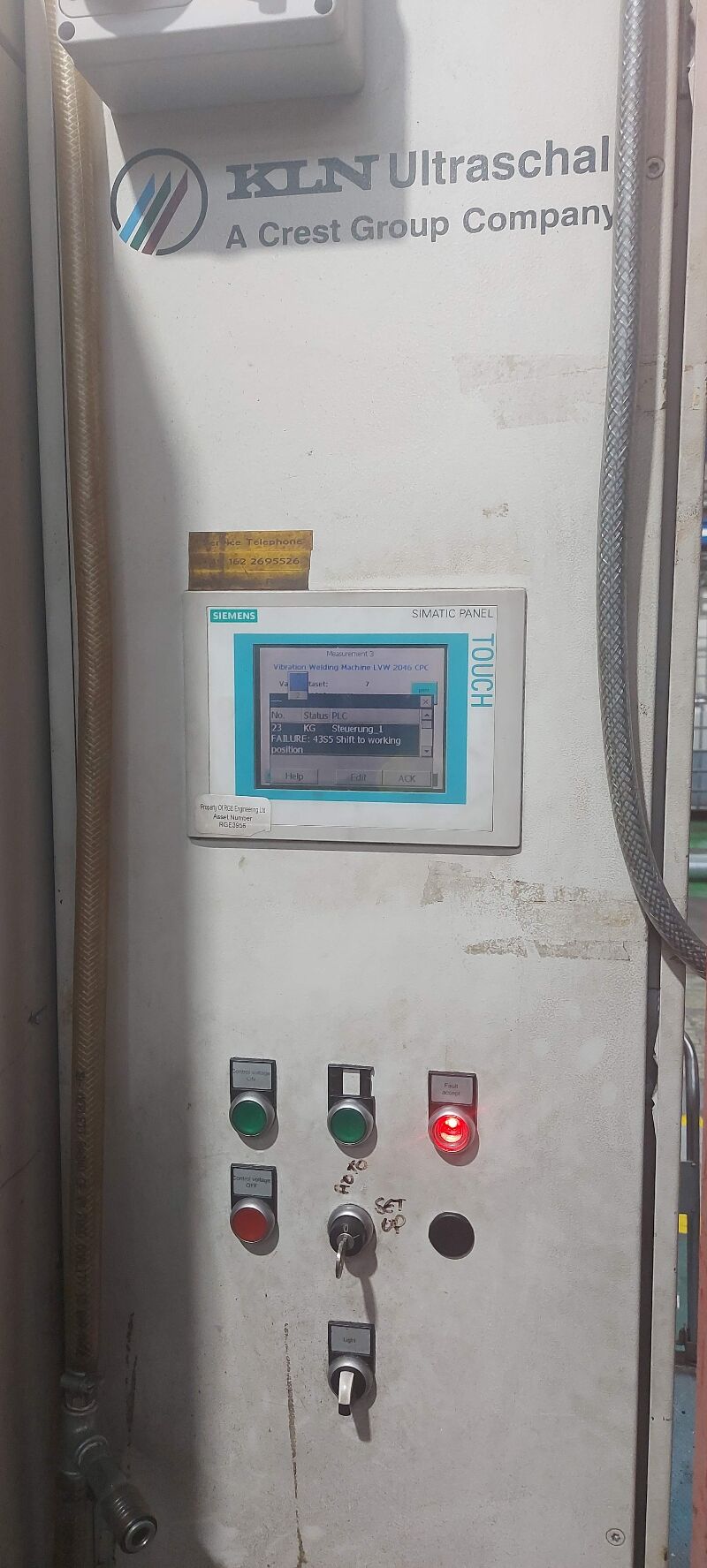

Touchpanel unit (inch) 7"
Noise Emission: <78 dBa
Compressed Air Connection: Min 5 Bar

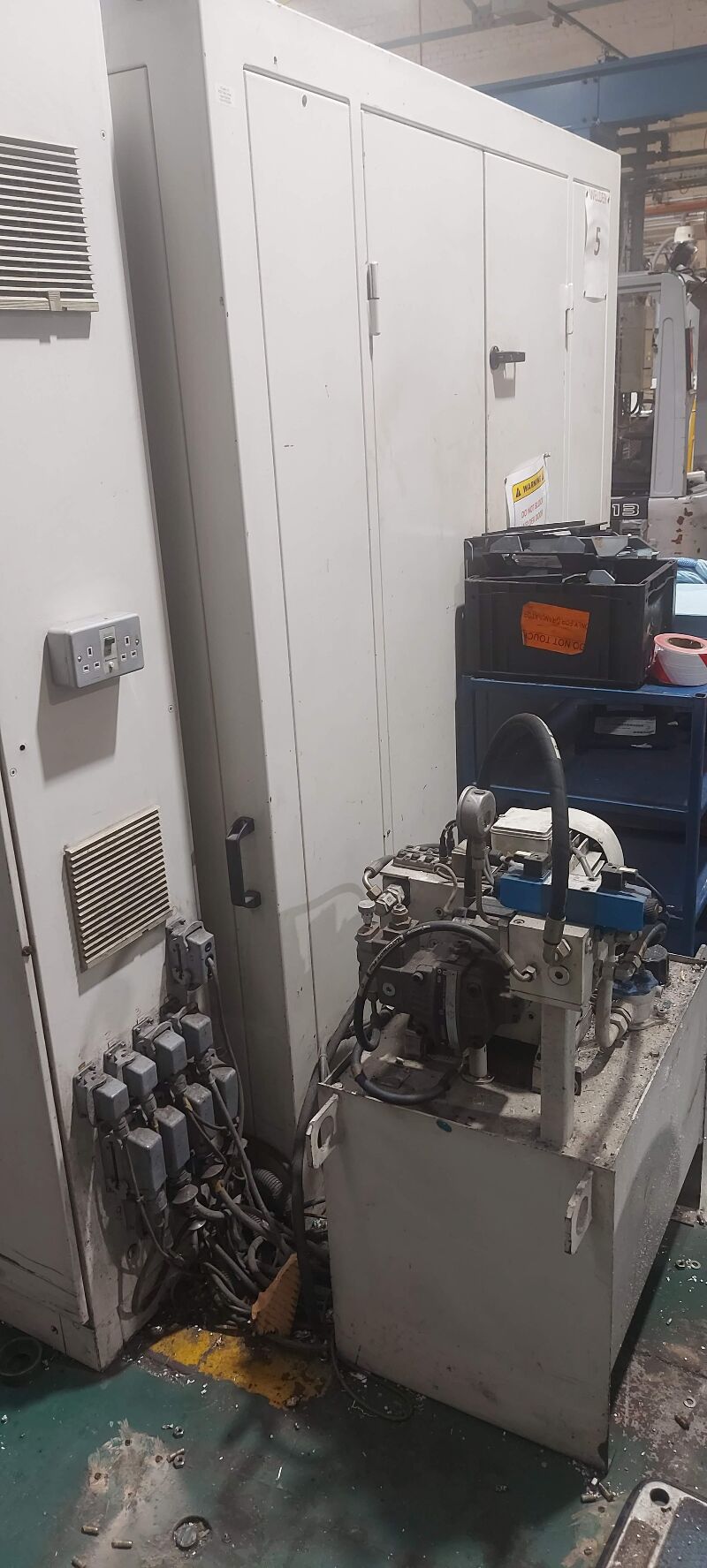

Lift table Drive: Hydraulic/Servo-electric
This unit has been yearly serviced by Branson
